Understanding 4-Layer PCBs: A Comprehensive Guide

A 4-layer pcb strikes an effective balance of signal performance, routing density, and cost. By combining dedicated reference planes with accessible outer signal layers, these boards deliver cleaner high-speed operation, improved power integrity, and compact layouts. This guide explains how 4 layer pcb board constructions are built, where they provide the most value, and how to approach 4 layer pcb design and manufacturing for reliable, repeatable results. If you are moving up from 2 layers or optimizing for EMI, mastering 4 layer pcb stackup choices, materials, and manufacturing details will help you be successful.

What is a 4-Layer PCB?

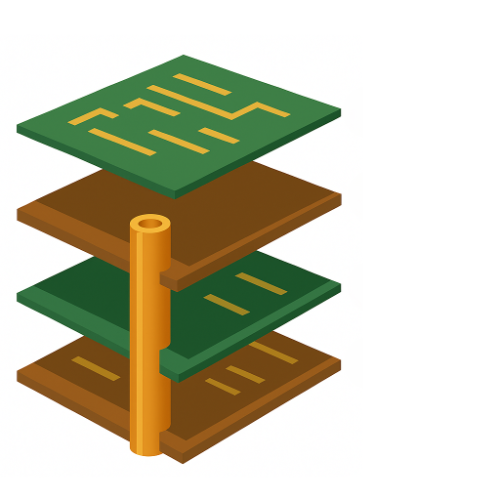

A 4 layer pcb consists of four copper layers laminated together with insulating dielectric materials. In the most common format, the two outer layers support signals and components, while the two inner layers act as solid planes for ground and power distribution. These internal planes provide stable reference surfaces and controlled impedance paths, which are crucial for high-speed and mixed-signal designs.

Compared with a 2-layer PCB, a 4 layer board offers more routing channels, defined return paths for fast signals, significantly lower electromagnetic interference (EMI), and a lower-impedance power distribution network (PDN). Compared with a 6-layer PCB, a 4 layer circuit board is generally more cost-effective and quicker to fabricate, though it provides fewer dedicated layers for isolation and ultra-high-speed routing. For many products, 4 layers deliver an ideal blend of performance and budget.

Advantages of 4-Layer PCBs

• Enhanced routing capacity: With two continuous inner planes, the outer layers stay available for dense component placement and clean signal routing. The result is fewer vias, shorter traces, and easier breakout for fine-pitch packages.
• Improved signal integrity: Solid ground planes provide low-inductance return paths that reduce crosstalk, ringing, and EMI. Controlled impedance on outer layers supports high-speed interfaces such as USB, HDMI, Ethernet, and PCIe.
• Compact, efficient layouts: Stable reference planes and tighter routing enable smaller boards, higher component density, and shorter interconnects, which improve performance in space-constrained enclosures.

These benefits depend on a well-planned pcb stackup 4 layer strategy. A disciplined 4 layer pcb stackup reduces loop areas and simplifies decoupling, directly improving both EMI and PDN performance.

It is important to remember that layer-count is not the true cost driver, lamination cycles are. A 4-layer board with one lam cycle is far more economical than any build requiring sequential lamination, regardless of layer count.

Typical 4-Layer Stackup and Lamination

A typical 4 layer stackup looks like this:

• Copper foil (Layer 1)
• Prepreg
• Core with copper on both sides (Layers 2 & 3)
• Prepreg
• Copper foil (Layer 4)

This entire stack is pressed and cured in a single lamination press cycle, because:

• The inner layers (L2/L3) are already fabricated on the core before lamination.
• Only one pressing step is needed to bond the prepreg and outer foils.

Exceptions:

• A 4 layer pcb might take more than one cycle if there are buried or blind vias requiring sequential lamination.
• The design uses a nonstandard 4 layer board stackup (rare for 4 layers).
• There is back-drilling or resin-filled via processing requiring extra steps, but these are not lamination cycles.

Understanding lamination order and material selections is central to a robust pcb stackup 4-layer plan and sets the foundation for consistent impedance and manufacturability.

According to IPC-2221 and IPC-2222, plane layers should be as continuous as possible to support impedance control and reduce EMI. Any slots, voids, or copper balancing issues introduced into inner planes can degrade impedance by 5–15%.

Common Stackups for 4-Layer PCBs

Two popular configurations serve most applications. The choice affects impedance, crosstalk, EMI, and manufacturability. Selecting a standard 4 layer pcb stackup early helps ensure predictable results and reduces risk during fabrication.

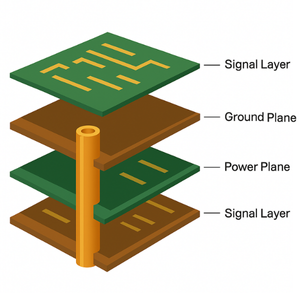

1. Signal | Ground | Power | Signal (Most common)

Pros:

• High-speed signals reference a continuous ground
• Tight PDN coupling with decoupling
• Predictable impedance performance

Considerations:

• Maintain uninterrupted ground under critical routes
• Confirm dielectric thickness to hit target impedance

2. Signal | Power | Ground | Signal (Alternative)

Pros:

• Works for moderate-speed designs
• Can support thicker power planes for current-carrying paths

Considerations:

• Harder to manage return paths
• Requires careful routing to avoid crossing plane splits

Practical guidance:

• Place a solid ground plane directly beneath the top signal layer to minimize loop area and emissions.
• Keep power and ground closely spaced to lower PDN impedance.
• Verify available dielectric materials and thicknesses with your 4 layer pcb manufacturer, then run impedance calculations with their material library.
• For RF or very high-speed designs, consider lower-loss laminates and tighter dielectric control within the 4 layer board stackup.

IPC-2141A formulas for controlled impedance should be used with the fabricator’s actual dielectric values, not catalog values, to account for resin content variation and glass weave effects.

Fundamentals of 4-Layer PCB Design

Successful 4 layer pcb design prioritizes signal integrity, power integrity, and thermal performance. A few principles consistently deliver better outcomes.

• Return paths and loop areas: Route high-speed signals over continuous ground, avoid plane splits beneath critical traces, and minimize loop area to reduce radiation and susceptibility.
• Component placement and decoupling: Place decoupling capacitors close to IC power pins, with short, wide connections to ground and power planes. Separate noisy digital sections from sensitive analog circuitry.
• Controlled impedance: Coordinate trace width, spacing, and dielectric thickness to achieve common targets such as 50 ohm single-ended and 90–100 ohm differential. Keep pairs tightly coupled and length-matched as required.
• Via strategy: Use minimal layer transitions on fast nets, avoid stubs, and consider back-drilling for very high-speed lines. Stitch grounds near layer transitions to provide local return paths.
• Thermal management: Use copper pours and thermal vias to distribute heat.

Via stub length is one of the largest hidden contributors to signal degradation on multilayer boards. Backdrilling, defined in IPC-6012, can reduce reflections and insertion loss on high-speed interfaces above ~3–5 GHz. For DDR, PCIe, and other high-speed buses, IPC-9701 thermal cycling and reliability guidelines should be considered when determining annular ring, via aspect ratio, and drill tolerances.

Applications of 4-Layer PCBs

• Consumer & communications: RF modules, routers, wearables
• Automotive & industrial: ECUs, power stages, sensor hubs
• Medical & IoT: Portable diagnostics, gateways, sensors

In automotive and medical applications subject to IPC-A-610 Class 2 or Class 3 requirements, 4-layer boards provide improved noise immunity and reliability margins, especially when exposed to temperature cycling and vibration.

4-Layer PCB Manufacturing Process

The following steps describe a standard build without sequential lamination for a 4 layer pcb.

1. Inner layer imaging and etch
2. Lamination (single cycle)
3. Drilling + copper metallization
4. Outer layer imaging and etch
5. Solder mask & finish (ENIG, HASL, etc.)
6. Profiling, AOI, and electrical test

Quality measures reinforce repeatability and compliance:

• AOI for trace width/spacing
• X-ray for registration
• Electrical test (flying probe or fixture)
• Impedance coupons to validate controlled impedance

IPC-6012 Class 2 and Class 3 call out specific requirements for dielectric integrity, minimum copper plating thickness, annular ring, and registration that directly impact 4-layer reliability.

Fabricators also evaluate glass weave skew, especially with 2116 and 7628 weaves, which can distort differential impedance unless mitigated with spread-glass materials or angle routing.

Cost and Lead Time Considerations

• Stackup and materials: Standard FR-4 and common dielectric thicknesses minimize cost and accelerate sourcing. Specialty laminates add performance and cost, and may alter your 4 layer board stackup.
• Copper weight and finish: Heavier copper and ENIG finishes increase cost but may be necessary for current capacity and assembly yield.
• Via technologies: Through-holes keep lamination to one cycle; blind or buried vias require sequential lamination and extend both cost and lead time.
• Panel efficiency: Board size, array design, and fiducials influence yield and overall price.

Engage your pcb manufacturer early to lock in a standard 4 layer pcb stackup, confirm achievable impedance tolerances, and optimise panel utilisation for cost and schedule. It is also advisable for designers to select stackups the fabricator already builds in volume and using standard dielectric builds dramatically reduces lead time and cost variability

Frequently Asked Questions

How does a 4 layer pcb improve EMI performance? A continuous ground plane directly under high-speed signal layers reduces loop area and provides a low-impedance return path. This lowers radiated and conducted emissions and makes EMC compliance easier. Choosing a standard 4 layer pcb stackup with ground on L2 is a proven method.

What copper thickness should I choose? For general digital and mixed-signal designs, 1 oz copper on outer layers and 1 oz on inner planes is common. Power-dense sections may benefit from 2 oz copper on planes or localized pours. Keep in mind that thicker copper affects impedance and may require wider traces or adjusted dielectrics within your 4 layer pcb stackup.

When should I move from a 2-layer to a 4 layer circuit board? Move to 4 layers when you need controlled impedance, quieter return paths, higher routing density for fine-pitch parts, or improved EMI performance. If you are facing ground bounce, crosstalk, or routing congestion, a well-planned 4 layer board stackup typically resolves these issues while remaining cost-effective.

Can I route high-speed differential pairs on a 4 layer pcb board? Yes. Place differential pairs on an outer layer over a solid ground plane, maintain consistent width and spacing to achieve target differential impedance (often 90 or 100 ohms), minimize stubs, and avoid routing across plane splits. This is most reliable in a standard 4 layer pcb stackup.

What impedance tolerance is realistic? Many fabricators hold ±10% impedance tolerance on 4-layer boards when using controlled materials and process controls. Align target impedances, 4 layer pcb stackup details, and test coupons with your 4 layer pcb manufacturer early in the design.

Will my 4 layer pcb need more than one lamination cycle? Standard 4-layer builds require a single lamination cycle. If your design includes blind or buried vias, sequential lamination is required, increasing the cycle count to two or more. Processes like back-drilling or resin-filled vias add steps but are not additional lamination cycles.

Key Takeaways

• A 4 layer pcb uses two outer signal layers and two inner planes to improve signal integrity, EMI performance, and routing density.
• The standard 4 layer pcb stackup with ground beneath the top layer provides predictable impedance and clean return paths for high-speed signals.
• Most 4-layer boards are built in a single lamination cycle; sequential lamination is only needed for blind or buried vias.
• Coordinate pcb stackup 4 layer choices, materials, and impedance goals with your 4 layer pcb manufacturer early to ensure manufacturability and reliable results.

Using IPC-based design rules, material specifications, and lamination controls ensures that a 4-layer PCB performs not just electrically,but also mechanically and thermally across the product’s entire lifecycle.

By aligning 4 layer pcb design practices with a proven 4 layer stackup and by collaborating closely with fabrication experts, teams can deliver 4 layer board designs that meet performance targets on schedule and budget.
