Mastering Back Drilling in PCB Manufacturing
.png?resizemode=force&maxsidesize=500)
IPC design and performance standards increasingly recognize back drilling as a practical method for managing via discontinuities in high-speed designs, particularly where traditional through-hole vias are retained for cost or manufacturability reasons.
What Is Back Drilling?

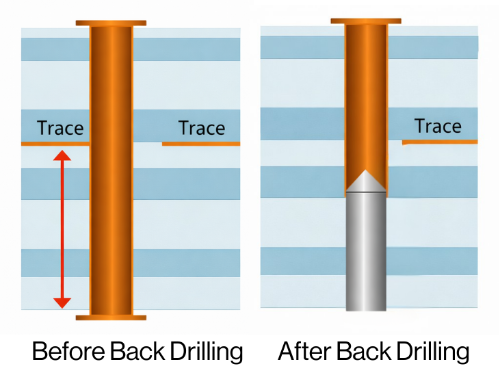

Back drilling is a controlled-depth drilling process that removes the unused conductive stub of a plated through via from the opposite side of the board. When a signal transitions through a via that does not span the entire stackup, the remaining metal above or below the target layer forms a stub. That stub behaves like a resonant element, reflecting energy, degrading rise times, and increasing jitter. Back drilling selectively removes this portion to minimize parasitic effects. Engineers may specify a backdrill on critical nets where a back-drill is more cost-effective than re-architecting the stackup
Unlike traditional drilling, which creates full-depth plated through holes connecting all layers, back drilling targets only the excess portion of an already plated via. It does not create new interconnects; it refines existing ones by shortening their effective length to match the intended signal path. In many build packages, the term back drill is used interchangeably with back drilling to call out layer-specific removal.
Controlled-depth techniques enable precise removal to a specified target layer. Depth control is achieved with mechanical methods such as Z-height programming, drill hit counts, and material calibration, supported by optical registration and layer mapping to avoid cutting into the active connection pad. A robust backdrill program combines accurate stackup data, careful back-drill depth planning, and tight equipment calibration.
IPC-2221 (Generic Standard on Printed Board Design) highlights the importance of controlling via discontinuities and recommends minimizing unused via length in high-speed signal paths, a requirement that back drilling directly supports.
Why Back Drilling Matters for High-Speed Designs
In high-speed RF designs, for example, via stubs introduce capacitive loading and can resonate at specific frequencies. This causes reflections, insertion loss, and discontinuities that grow more significant as data rates reach several gigabits per second and edge rates drop into tens of picoseconds. The back drilling technique addresses these issues by limiting stub length and improving the performance of the interconnect.
By reducing stub length, back drilling lowers return loss and improves impedance continuity through the interconnect. The benefits include cleaner eye diagrams, reduced deterministic jitter, and better margins to compliance masks. It also mitigates common-mode conversion in differential pairs, improving electromagnetic compatibility.
Back drill is often a cost-effective alternative to buried and blind vias when stackup or budget constraints make other options impractical. IPC-2141 (Controlled Impedance Circuit Boards and High-Speed Logic Design Guide) supports minimizing parasitic elements in vias and interconnect transitions, reinforcing the use of back drilling in controlled-impedance designs.
A good rule of thumb is to use back drilling when via stubs exceed approximately one-tenth of the signal rise-time equivalent electrical length, especially for multi-gigabit serial links.
Back Drilling Process and Techniques
Back drilling occurs after primary drilling and plating. A typical workflow includes:
-
Identify vias that require stub removal and define target layers.
-
Create a back drill program with coordinates, drill diameters, and exact depth settings per layer.
-
Mount the plated board on a CNC drill capable of controlled-depth drilling.
-
Drill from the opposite side down to just above the target connection pad, leaving a safety margin.
-
Verify hole depth and quality using tools and processes such as microsectioning, X-ray, or AOI) as needed.
-
Clean and prepare the panel for solder mask and final finish.
Common tools include high-precision CNC drill rigs, rigid carbide bits sized slightly larger than the original via barrel, Z-axis feedback systems, and registration tools that align the drilling pattern to the stackup. CAM software generates layer-specific drill files and manages tolerances for each net class. A robust backdrill process relies on accurate stackup thickness data and consistent back-drill tooling diameters.
Key challenges include avoiding damage to connection pads, controlling drill wander in thick or high layer-count boards, and maintaining adequate annular ring after removal. Consider drill bit wear, panel rigidity, glass weave effects, and target a minimal residual stub (often 8–10 mil or less) as a safety buffer. Experienced shops will log back drilling depth offsets per panel to tighten variation and protect yield. Note: Back drilling should have the same level of documentation and tolerance control as primary drilling operations.
IPC-6012 (Qualification and Performance Specification for Rigid Printed Boards) requires that drilled and plated features meet defined integrity and annular ring requirements, which must still be satisfied after back drilling.
Calculating Via Stub Lengths
Via stub length is the distance from the via’s last active connection layer to the end of the plated barrel. To estimate it, identify the signal’s entry and exit layers, then measure the board thickness between those layers and the far end of the via. The stub length equals the unused portion beyond the last connected layer. This calculation informs whether a back drill is needed and what the back drilling depth should be.
Useful methods include PCB CAD stackup calculators, CAM layer mapping, and signal integrity simulators (2D/3D field solvers) to predict resonant frequencies and reflection coefficients. A practical rule of thumb is to keep via stubs much shorter than a quarter wavelength of the highest significant harmonic of the signal. For example, at 10 GHz, the quarter wavelength in FR-4 is on the order of a few millimeters; keeping stubs under roughly 0.5 mm can substantially improve return loss. When the estimate exceeds this threshold, a backdrill operation is warranted to reduce resonance.
The performance impact is direct: longer stubs increase capacitive loading and introduce resonances that degrade insertion loss and produce notches in S-parameters. Short stubs improve impedance continuity, reduce mode conversion for differential pairs, and increase eye height and width in high-speed links. Where precision alignment is challenging, specifying a conservative back-drill depth with a small residual stub is a good compromise.
Designing for Back Drilling: Best Practices
Effective back drilling starts with stackup planning and via strategy. Define routing layers to minimize via transitions and specify which nets require back drilling based on speed and sensitivity. Use layer pairs and consistent reference planes to simplify drilling targets and reduce variability.
-
Specify back drill diameters 4–8 mil larger than the original via to ensure plating is fully removed along the stub.
-
Provide a safety margin above the target pad; typical residual stubs are 8–10 mil, adjusted to manufacturer capability.
-
Maintain adequate annular ring on capture pads to tolerate registration and depth control.
-
Keep back drilled vias clear of dense component areas to reduce risk of pad damage and improve machine access.
-
Identify nets for back drill in fabrication notes and supply layer-specific target depths and drill files.
Common pitfalls include underestimating registration tolerance, leaving insufficient annular ring, using the same drill size as the original plated via (leading to incomplete removal), and neglecting the fabricator’s achievable depth tolerance. Early collaboration with your PCB manufacturer aligns hole size, depth control, and inspection methods to their equipment and yield goals. Document back-drilled vias clearly in both fabrication drawings and CAD attributes.
IPC-7351 and IPC-2221 together emphasize maintaining sufficient pad geometry and mechanical robustness when secondary drilling operations are applied.
Future Trends in Back Drilling Technology
IPC roadmap discussions increasingly cite back drilling as a bridge technology that extends the usability of conventional through-hole vias in next-generation designs. Over time, back drilling has evolved with improved Z-axis control featuring real-time feedback, AI-assisted CAM optimization for layer mapping, and enhanced metrology that reduces reliance on destructive microsections. Drill bit materials and coatings continue to improve, reducing wander and enhancing edge quality in thick and hybrid dielectric stackups. Automated backdrill selection within design rule checks is also gaining traction.
Expect tighter depth tolerances, smaller residual stubs, and more automated candidate selection based on signal integrity rules. With boards using more advanced materials, back drilling will remain central to cost-effective interconnect optimization, complementing blind/buried vias and laser microvias. Consistent back-drill results across panel lots will become a key differentiator for high-volume production.
Frequently Asked Questions
Is back drilling the same as controlled-depth drilling?
Back drilling is a specific application of controlled-depth drilling that removes via stubs after plating. Controlled-depth drilling can also refer to processes that create blind vias, but back drilling focuses on eliminating unused barrel sections. In many factories, a backdrill program is distinct from blind via drilling steps.
How do I specify back drilling in fabrication files?
Include back drill layers and target depths in your fabrication notes and provide separate back drill drill files. Call out drill diameters, residual stub targets, and the nets or via classes to be processed. If your CAD tool supports it, use back-drill attributes to tag specific vias for backdrill processing.
What tolerances should I expect?
Typical depth control tolerances are around ±5–10 mil, depending on board thickness and equipment. Confirm capabilities with your manufacturer and set residual stub margins accordingly. High-layer-count boards may need more conservative back-drill margins to account for warp and weave effects.
Does back drilling add cost or cycle time?
Yes. It introduces additional drilling, inspection, and CAM programming. However, it is often more economical than redesigning with blind or buried vias, and the performance gains can be necessary for compliance. A well-planned backdrill sequence minimises schedule impact.
Can I back drill differential pairs?
Yes. Back drilling is particularly effective for differential pairs in high-speed links. Ensure both vias are treated symmetrically, maintain pair spacing, and verify depth alignment to prevent skew. Many teams add a dedicated backdrill check in their SI/PI signoff.
