Annular Ring in PCB Design

Annular ring is one of the most important PCB design parameters affecting manufacturability, reliability, and long-term product performance. Whether designing a simple two-layer board or a high-density multilayer PCB, understanding annular ring requirements helps prevent breakout, improve fabrication yields, and reduce field failures.
This guide explains what an annular ring is, how to calculate it, how IPC standards apply, and what PCB designers can do to improve reliability and manufacturability.

What Is an Annular Ring?

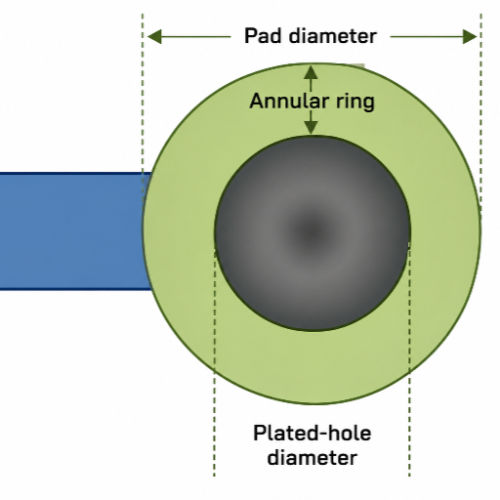

An annular ring is the copper area that remains around a drilled hole in a PCB pad. It is measured as the distance between the edge of the finished hole and the outer edge of the copper pad.
In simple terms, the annular ring is the copper "landing area" that surrounds a plated through-hole or via.

For a plated through-hole, the annular ring serves several critical functions:

• Provides mechanical support for component leads
• Creates a reliable electrical connection between the plated barrel and copper circuitry
• Compensates for drill wander and layer registration tolerances
• Improves resistance to thermal and mechanical stress
• Reduces the risk of breakout and intermittent connections

Annular rings are required on:

• Through-hole component pads
• Through-hole vias
• Blind vias
• Buried vias
• Microvias
• Internal layer pads

As PCB densities increase and hole sizes shrink, maintaining adequate annular ring becomes increasingly important.

Why Annular Ring Matters

A common misconception is that meeting the minimum annular ring requirement automatically ensures reliability.
In reality, annular ring is one of the primary factors affecting fabrication yield.
During manufacturing, drilled holes rarely land perfectly in the center of every pad. Normal process variations such as drill wander, image registration shifts, material movement during lamination, and plating tolerances can all reduce the effective annular ring.
If the copper margin becomes too small, the result may be:

• Breakout
• Reduced copper support
• Weak barrel-to-pad connections
• Pad lifting
• Reduced thermal-cycle reliability
• Open circuits

Because robust designs are built around manufacturing capability rather than theoretical minimum dimensions, designing additional annular ring margin into a PCB often improves yield and reliability significantly with little impact on board size.

How to Calculate Annular Ring

The standard formula is:
Annular Ring = (Pad Diameter − Finished Hole Diameter) ÷ 2

Example 1: Standard Via

• Finished hole: 0.25 mm (10 mil)
• Pad diameter: 0.55 mm (22 mil)

Annular Ring:
(22 − 10) ÷ 2 = 6 mil
Result: 6 mil annular ring

Example 2: Through-Hole Component

• Finished hole: 0.80 mm (31.5 mil)
• Pad diameter: 1.60 mm (63 mil)

Annular Ring:
(63 − 31.5) ÷ 2 = 15.75 mil
Result: 15.75 mil annular ring

Example 3: Microvia

• Hole diameter: 0.10 mm (4 mil)
• Pad diameter: 0.30 mm (12 mil)

Annular Ring:
(12 − 4) ÷ 2 = 4 mil
Result: 4 mil annular ring
When calculating annular ring, always use the finished hole size, not the drill diameter specified before plating.

IPC Requirements and Industry Guidelines

Industry requirements for annular rings are primarily defined by:

• IPC-2221: Generic Standard on Printed Board Design
• IPC-6012: Qualification and Performance Specification for Rigid Printed Boards
• IPC-A-600: Acceptability of Printed Boards

IPC standards define acceptable breakout conditions and minimum annular ring requirements based on product classification.

IPC Class 2
Used for most commercial and industrial electronics where continued performance is desired but occasional downtime is acceptable.

IPC Class 3
Used for high-reliability applications including:

• Aerospace
• Defense
• Medical devices
• Transportation systems
• Industrial controls

IPC Class 3 designs generally require larger annular rings and tighter process controls to ensure long-term reliability.
Because fabrication capabilities vary between manufacturers, designers should always confirm current minimum annular ring requirements with their PCB supplier before finalizing a design.

Designing to Prevent Breakout

Breakout occurs when a drilled hole partially removes the annular ring on one side of the pad. Common causes include:

• Drill wander
• Layer registration errors
• Lamination movement
• Material dimensional instability
• Aggressive pad size reduction

To minimize breakout risk:

• Increase pad diameter where possible
• Use symmetric stackups
• Avoid pushing minimum dimensions unnecessarily
• Maintain adequate drill-to-copper clearances
• Consider larger annular rings for thick boards and heavy copper designs

Many experienced PCB fabricators recommend designing beyond minimum capability whenever board real estate allows.

PCB Design Best Practices

Use Teardrops
Teardrops add copper between traces and pads, helping maintain connectivity if minor drill misregistration occurs.

Consider Oval Pads
Oval or elongated pads provide additional copper in the direction most susceptible to drill offset while minimizing routing impact.

Control Via-in-Pad Designs
When using via-in-pad technology, specify filled and capped vias to prevent solder wicking and maintain assembly reliability.

Verify Layer-by-Layer Requirements
Internal layer pads are often smaller than outer layer pads. Verify annular ring calculations on every layer, not just the surface.

Define Rules in CAD Software
Set annular ring rules in your PCB design software to automatically flag violations during DRC.

Perform DFM Review Early
A design-for-manufacturing review can identify annular ring concerns before fabrication begins, reducing costly redesigns and schedule delays.

Verification and Inspection
Manufacturers use several methods to verify annular ring integrity:

• Automated Optical Inspection (AOI)
• X-ray inspection
• Microsection analysis
• Registration measurement systems
• Cross-sectional analysis of plated holes

Microsection analysis remains one of the most effective ways to confirm annular ring quality and plated barrel integrity.
