Thermal Management PCB Manufacturing
Excess heat is one of the primary drivers of electronic component degradation and long-term reliability failures. The PCB is a primary thermal tool. The copper weight, plane geometry, via design, and substrate material in the board determine how effectively heat travels from a component junction to a heat sink, chassis, or cooling system. Get those decisions right in fabrication and you gain reliability. Get them wrong and no amount of external cooling will compensate.
At AdvancedPCB, we manufacture thermal management PCBs engineered to move heat efficiently away from high-power components through optimized copper structures, via designs, and substrate materials. From heavy copper PCBs and thermal via arrays to copper coin technology and insulated metal substrates (IMS), our fabrication processes are designed to support reliable thermal performance from prototype through production.
Our U.S.-based manufacturing capabilities support high-power PCB applications where thermal reliability, current density, and long-term system performance are critical.
Why Thermal Management Starts with the PCB
The PCB itself often determines how efficiently heat moves away from a component and into the surrounding system. Copper planes and via structures provide the primary thermal conduction paths within most PCB designs. Copper thickness, plane geometry, via density, and stack-up architecture all directly influence:
- Junction temperatures
- Thermal cycling reliability
- Current carrying capability
- Signal integrity stability
- Component lifespan
High current density increases resistive (I²R) heating, making conductor sizing and copper distribution critical to both electrical and thermal performance.
Poor thermal management can accelerate solder fatigue, increase electrical resistance, reduce RF performance, and shorten product life. Mismatches in coefficient of thermal expansion (CTE) between copper, laminate, and components can also accelerate interconnect failures during thermal cycling.
AdvancedPCB reviews thermal considerations early in the DFM process to help engineers identify thermal risks before fabrication begins.
Four PCB-Level Thermal Management Techniques
AdvancedPCB supports all four major PCB thermal management approaches. Each solves a different thermal problem, and many designs combine more than one technique in a single board.
1. Thermal Via Arrays
Thermal vias create low-resistance heat paths from surface-mounted components into internal or backside copper planes. Dense via arrays beneath exposed thermal pads are commonly used for power semiconductors, RF devices, and DC-DC converters.
Filled or plugged vias are commonly used beneath thermal pads to prevent solder wicking and maintain low thermal resistance during assembly. Thermal via-in-pad structures for QFN and bottom-terminated component packages are commonly implemented following IPC-7093 assembly guidance.
AdvancedPCB supports:
- Thermal via arrays
- Via-in-pad structures
- Filled and plugged via options
- Copper-filled thermal vias

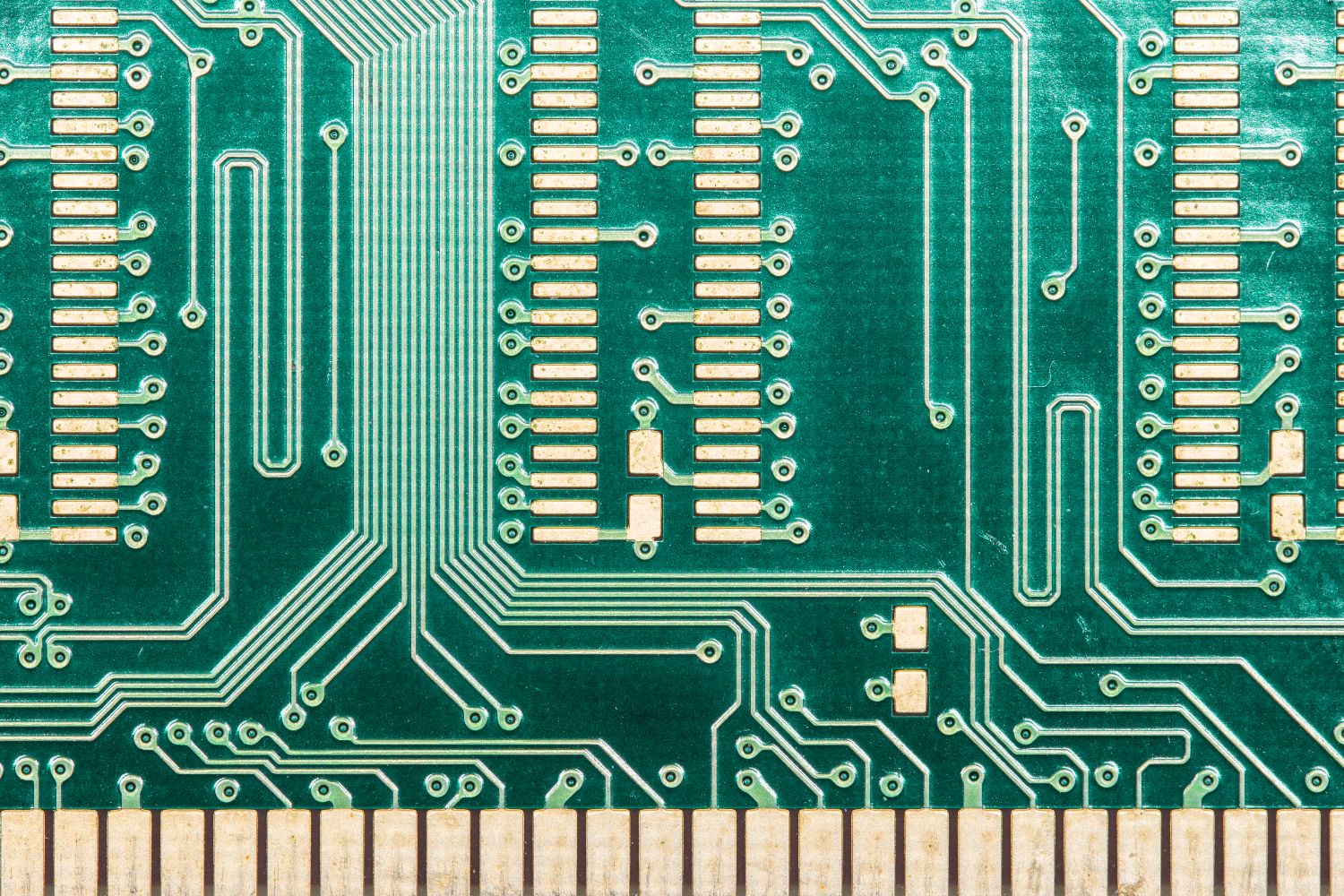

2. Heavy Copper PCBs
Heavy copper PCBs improve both current carrying capability and lateral heat spreading.
AdvancedPCB supports heavy copper PCB fabrication used in:
- Power electronics
- Industrial motor drives
- Power conversion systems
- High-current bus structures
Heavy copper layers reduce resistive heating while improving thermal distribution across the board. IPC-2152 current-carrying guidance is commonly used to evaluate conductor width, copper weight, and allowable temperature rise in power PCB designs.
3. Copper Coin Technology
Copper coin structures use solid copper inserts beneath high-power devices to create extremely low thermal resistance paths.
Copper coin technology is commonly used in:
- RF power amplifiers
- GaN and SiC power devices
- Aerospace electronics
- High-power LED systems
Copper coin structures are often used where vertical heat transfer requirements exceed the practical limits of via arrays and heavy copper planes alone. These structures help transfer heat directly to a chassis, cold plate, or heatsink with significantly lower thermal resistance than standard PCB via structures.
4. Insulated Metal Substrate (IMS) PCBs
IMS and aluminum-clad PCBs use a metal base layer combined with a thermally conductive dielectric to improve heat dissipation.
These PCB constructions are commonly used in:
- LED lighting systems
- Automotive lighting
- Power conversion systems
- Wide-area heat spreading applications
The dielectric layer in IMS constructions often becomes the dominant thermal resistance path and should be selected based on thermal conductivity (W/m·K), dielectric strength, and long-term reliability requirements.
The metal substrate acts as an integrated heatsink, improving thermal conductivity and system-level cooling efficiency.
Thermal Management PCB Design Considerations
Successful thermal PCB design requires balancing electrical, thermal, and manufacturability requirements.
Key considerations include:
- Component placement and airflow planning
- Copper weight and plane geometry
- Thermal via density and fill strategy
- Stack-up architecture and dielectric thickness
- Heat path planning to ambient or chassis
- Thermal expansion and cycling reliability
Thermal management PCB layouts are commonly designed in accordance with IPC-2221 guidelines for conductor spacing, current carrying capability, and thermal design considerations.
Copper remains the primary thermal conductor in most PCB designs, making copper thickness, plane size, and via connectivity critical to thermal performance.

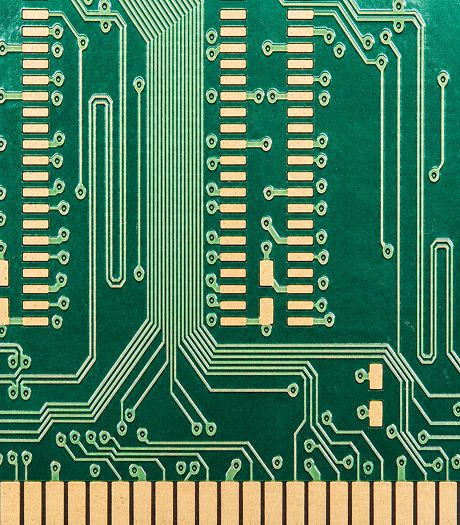

Thermal Management PCB Fabrication Capabilities
AdvancedPCB supports a broad range of fabrication capabilities for thermal management PCB designs including:
- Heavy copper PCB fabrication for high-current and high-power applications
- Thermal via arrays and via-in-pad structures for efficient heat transfer
- Copper-filled, plugged, and capped via options
- Copper coin technology for localized high-power thermal paths
- Insulated metal substrate (IMS) and aluminum-clad PCB constructions
- Mixed copper weight stack-ups for optimized thermal and signal layer performance
- Multilayer thermal management PCB fabrication
- Controlled-depth routing and cavity structures for thermal interface integration
- HDI structures combined with thermal management features
- Prototype through production manufacturing support
AdvancedPCB also supports thermal-focused stack-up planning, copper balancing, and manufacturability reviews to help engineers optimize heat flow while maintaining electrical and mechanical performance.
For high-reliability applications, fabrication processes can align with IPC-6012 Class 3 requirements and support programs requiring controlled documentation, traceability, and consistent thermal performance across production builds.
Thermal Management PCB Applications
AdvancedPCB manufactures thermal management PCBs for applications including:
- AI accelerators and data center infrastructure
- EV power electronics and charging systems
- RF and microwave power amplifiers
- Aerospace and defense electronics
- Industrial motor drives and power conversion
- High-brightness LED systems
These applications require controlled heat flow, reliable power handling, and stable long-term operation.
Why Advanced PCB Designers Choose AdvancedPCB for Thermal Management PCBs
Thermal management PCB fabrication requires more than standard PCB manufacturing. It requires process control, material expertise, and engineering collaboration focused on thermal reliability and manufacturability.
Engineers choose AdvancedPCB for:
- Heavy copper PCB fabrication
- Thermal via and via-in-pad expertise
- Copper coin and IMS PCB capabilities
- Engineering-driven DFM support
- Prototype through production scalability
- High-reliability manufacturing processes
- U.S.-based engineering and fabrication support
AdvancedPCB supports fabrication aligned to IPC-6012 Class 3 requirements for high-reliability PCB applications used in aerospace, defense, industrial, and power electronics systems.
By aligning thermal requirements with fabrication capabilities early in the design process, we help reduce development risk and improve long-term system reliability.
