Stencil in PCB: Essential for Perfect Prototyping

Q: Can the same PCB stencil be reused for multiple production runs?

Yes. A PCB stencil can generally be reused for multiple production runs as long as the PCB revision and solder paste requirements have not changed and the stencil remains in good condition. If pads, footprints, component packages, or paste requirements change, the stencil data should be reviewed to determine whether a new solder stencil is required.

Q: How do you choose the right aperture size for a solder stencil?

Solder stencil aperture size depends on the PCB pad geometry, component package, stencil thickness, and required solder paste volume. Apertures do not always need to match the pad dimensions exactly. They may be reduced, divided, or reshaped to improve paste release and help control defects such as bridging or excessive solder.

Q: How long does a PCB solder stencil last?

There is no universal lifespan for a PCB stencil. Service life depends on stencil material, aperture size, production volume, cleaning methods, handling, storage, and printing conditions. Stencils should be regularly inspected for aperture damage, contamination, deformation, or loss of tension that could affect solder paste deposition.

Q: What information is needed to make a PCB stencil?

A PCB stencil is typically created from the solder paste layer of the PCB design. The stencil supplier may also need the board or panel dimensions, PCB revision, stencil thickness, frame requirements, fiducial locations, and any special aperture modifications. For complex assemblies, the component mix and solder paste requirements should also be reviewed before the stencil is manufactured.

Q: What is the difference between a framed and frameless PCB stencil?

A framed PCB stencil has the stencil foil permanently mounted and tensioned within a frame, making it well suited for repeatable production printing. A frameless stencil uses a removable foil with a compatible tensioning system. Frameless designs can reduce storage requirements and may be useful when many different PCB assemblies are produced.

Posted 4/12/2013 by AdvancedPCB

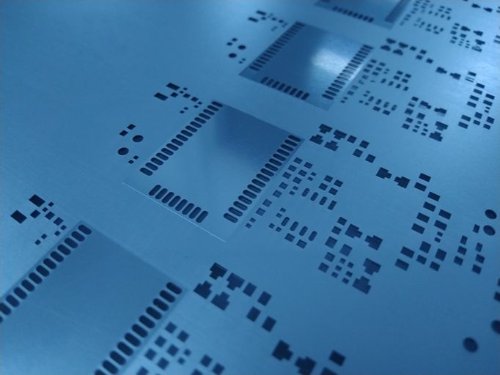

When you are in the process of creating prototype PCBs for your application you want to get the perfect PCBs created without having to go back and forth on your design. It is important that your printed circuit boards work how you need them while giving you all of the power and space you need for your project. Getting SMT stencils from AdvancedPCB helps make this process easier. All of the SMT stencils available are 100% laser-cut type 304 and are made of stainless steel, allowing you to get the high quality finish you need.

Ready to Place Your PCB Order at AdvancedPCB?

When you are ready to place your order with AdvancedPCB you have different options for a quote based on your preference. When you register for an account with AdvancedPCB you can get an instant quote online, use the FreeDFM file check system to get a detailed quote, or request a traditional quote by email. Contact the experts at AdvancedPCB today for more information.
