RF PCB Layout for Signal Integrity

Posted 2/13/2026

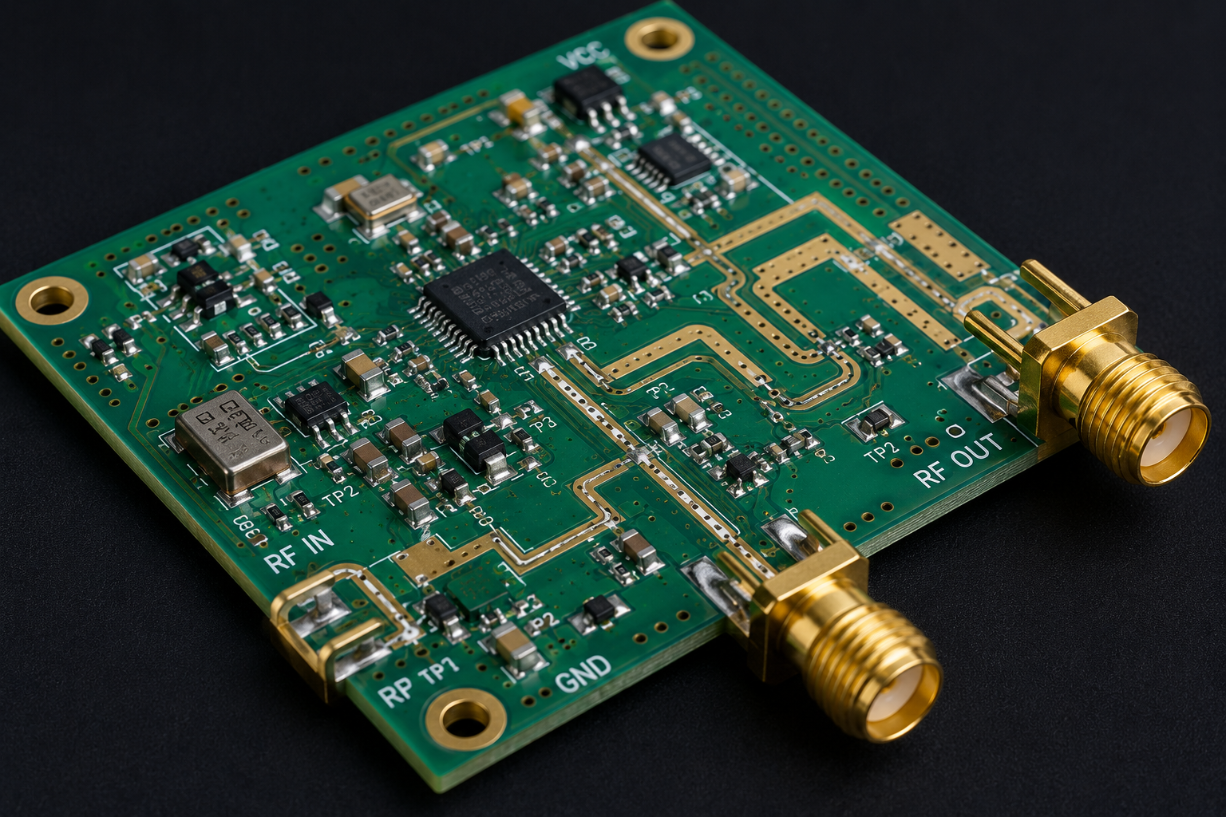

RF PCB Layout Best Practices

RF PCB layout affects signal integrity, insertion loss, impedance matching, and interference in high-frequency circuits. Poor routing, interrupted ground planes, and poorly designed via transitions can introduce signal reflections, unwanted coupling, and performance problems.

Unlike conventional PCB layouts, RF designs require careful control of transmission-line geometry, grounding, component placement, and electromagnetic interference.

These seven RF PCB layout best practices help engineers improve performance and manufacturability:

  1. Maintain continuous ground reference planes.
  2. Use controlled-impedance transmission lines.
  3. Minimize unnecessary vias and layer transitions.
  4. Place matching networks close to RF components.
  5. Separate sensitive RF circuits from noisy digital sections.
  6. Design connector launches and ground stitching carefully.
  7. Validate critical RF paths through simulation and measurement.

The appropriate layout strategy depends on operating frequency, signal requirements, materials, and PCB construction.

Foundations of RF PCB Designs

At high frequencies, PCB traces behave as transmission lines. Their geometry, surrounding dielectric materials, and reference planes determine how RF signals travel through the board. Controlled impedance helps minimize signal reflections and maintain predictable electrical performance. Many RF systems use 50-ohm transmission lines, although other impedance values may be required depending on the application.
Three common RF PCB transmission-line structures are microstrip, stripline, and grounded coplanar waveguide (GCPW).

Microstrip: A signal conductor on an outer PCB layer with a reference plane beneath it. Microstrip is relatively simple to manufacture and provides easy access for component connections and testing. However, it is more exposed to electromagnetic interference and unwanted coupling.

Stripline: A signal conductor positioned between reference planes within the PCB. Stripline provides better electromagnetic shielding and reduced radiation compared with typical microstrip structures. It requires internal signal layers and more complex transitions to surface-mounted components.

Grounded Coplanar Waveguide (GCPW): A signal trace with adjacent ground conductors on the same layer and a reference plane beneath it. GCPW can provide good impedance control and is commonly used for RF connector launches and surface-mounted components. Trace spacing and ground-via placement must be carefully controlled.

The best structure depends on operating frequency, material properties, board thickness, routing requirements, and available PCB layers.

IPC-2141A provides guidance related to controlled-impedance design, while IPC-2221 and IPC-2222 address general and rigid PCB design requirements. IPC-6018 may apply to high-frequency printed boards, depending on the project specifications.

Material selection also affects RF performance. Dielectric constant (Dk), dissipation factor (Df), copper roughness, and dielectric thickness influence impedance and signal loss.

For deeper guidance on laminate tradeoffs, see:

Choosing the Right Laminate Material for Your PCB Design
https://www.advancedpcb.com/en-us/resources/blog/choosing-the-right-laminate-material-for-your-pcb-design/

For common high-frequency pitfalls to avoid, consult:
https://www.advancedpcb.com/en-us/resources/blog/overcoming-common-pitfalls-in-high-frequency-pcb-design/

Key Considerations for RF PCB Layout

RF PCB layout requires careful control of trace geometry, electrical length, routing transitions, and component connections.

Maintain consistent trace geometry. Changes in trace width, dielectric thickness, or reference-plane geometry can alter characteristic impedance. Maintain consistent dimensions along critical RF paths whenever possible.

Keep RF signal paths short and direct. Shorter paths can reduce insertion loss and unwanted coupling. However, trace lengths must still meet any intentional phase or matching requirements.

Avoid abrupt routing changes. Sharp changes in transmission-line geometry can introduce impedance discontinuities. Use appropriate bends, tapers, and transitions based on operating frequency and transmission-line structure.

Maintain adequate trace separation. Closely spaced RF traces can experience unwanted electromagnetic coupling. Spacing requirements depend on frequency, geometry, and acceptable coupling levels.

Minimize unnecessary vias. Each via transition introduces parasitic inductance, capacitance, and potential impedance discontinuities.

When vertical transitions are required, backdrilling or appropriately designed blind vias can reduce unused via stub length.

Filled and capped via-in-pad structures support dense component placement and surface planarity, but they do not, by themselves, eliminate electrical stubs.

For additional information, see our article on Understanding Back Drilling in PCB Manufacturing.

Maintain return-path continuity. Avoid routing RF traces across gaps or splits in reference planes. These interruptions can increase loop inductance, unwanted radiation, and signal coupling.

For demanding microwave designs, electromagnetic simulation can help evaluate the effects of trace geometry, spacing, vias, and transitions before fabrication.

Component Placement Strategies

Component placement directly affects RF circuit performance. Long connections between components can introduce parasitic inductance, capacitance, and transmission-line effects that alter circuit behavior.

Begin with a functional layout that follows the intended RF signal path. Place related components close together, particularly within matching networks and sensitive signal paths.

Place matching networks near RF components. Impedance-matching networks help transfer power between circuit stages and reduce reflections. Position matching components near the devices or interfaces they are intended to match.

Separate sensitive RF and noisy digital circuits. High-speed digital signals, switching regulators, and clock circuits can introduce noise into RF sections. Use appropriate physical separation, routing, filtering, and grounding practices.

Minimize parasitic effects. Keep connections between RF components short when practical. Consider pad geometry, component orientation, and interconnect inductance.

Maintain proper grounding. Follow component manufacturer recommendations for exposed ground pads, ground vias, and surrounding copper. Poor ground connections can affect amplifier, filter, oscillator, and other RF circuit performance.

Avoid floating copper. Unconnected copper regions can create unintended resonances or coupling. Remove unnecessary copper or connect it to ground using an appropriate via arrangement.

Component placement should account for electrical performance, thermal management, assembly requirements, and manufacturing tolerances.

Ground Planes and Power Distribution

Grounding is one of the most important aspects of RF PCB layout.

At high frequencies, return currents tend to follow paths associated with the signal's electromagnetic field. Interruptions in the reference plane can force return currents to take longer paths, increasing loop inductance and unwanted coupling.

Maintain continuous ground planes. Provide uninterrupted reference planes beneath critical RF transmission lines whenever the selected structure requires them. Avoid routing RF traces across gaps, splits, or large openings.

Use ground via stitching. Ground vias connect reference planes and ground conductors across PCB layers. They can help maintain grounding continuity, reduce unwanted coupling, and support grounded coplanar waveguide structures.

Ground-via placement is particularly important near connector launches, transmission-line transitions, and areas requiring additional electromagnetic isolation.

Control power distribution noise. Switching noise from power supplies can interfere with sensitive RF circuits. Use appropriate filtering, decoupling capacitors, placement, and grounding practices.

Place decoupling capacitors close to RF power pins, following component manufacturer recommendations. Short connections help reduce parasitic inductance.

For sensitive circuits such as phase-locked loops, voltage-controlled oscillators, and low-noise amplifiers, additional filtering or low-noise regulators may be required.

PCB Stackup and Material Choices

PCB stackup and material selection influence characteristic impedance, insertion loss, and electromagnetic coupling.

Important considerations include dielectric constant (Dk), dissipation factor (Df), dielectric thickness, copper thickness, surface roughness, and reference-plane placement.

The selected laminate must support the required transmission-line geometry and electrical performance.

For example, low-loss materials may benefit applications with long RF transmission lines or demanding insertion-loss requirements. However, material selection should also consider cost, availability, and manufacturing compatibility.

Hybrid stackups combine RF laminates with conventional PCB materials to support both high-frequency and digital circuitry within the same board.

These constructions require careful consideration of material compatibility, thermal expansion, bonding materials, and lamination processes.

Engineers should coordinate with their PCB manufacturer before finalizing stackup dimensions and controlled-impedance requirements.

For a detailed comparison of FR-4, Rogers, PTFE, and other high-frequency laminates, read our RF PCB Materials guide.

Signal Integrity and EMI Mitigation

RF PCB layouts must control impedance discontinuities, signal loss, unwanted coupling, and electromagnetic interference.

Coupling can occur between adjacent traces, components, vias, and reference structures.

Several practices can help reduce these effects.

Maintain appropriate trace separation. Increase spacing between sensitive RF traces and potential interference sources where practical. For high-density designs, electromagnetic simulation can help evaluate coupling.

Avoid unnecessary discontinuities. Changes in trace width, layer transitions, connector launches, and reference-plane interruptions can create reflections or radiation.

Use shielding when required. Some RF designs benefit from grounded copper regions, via fences, or metal shielding enclosures. These measures should be evaluated based on frequency, isolation requirements, and mechanical constraints.

Separate noisy circuits. Keep switching regulators, fast digital clocks, and high-power nodes away from sensitive RF receivers when possible.

Protect external interfaces. RF connectors and antenna feeds may require filtering or electrostatic discharge protection. Components should be selected to meet the operating frequency and signal-performance requirements.

Signal integrity and EMI considerations should be addressed during initial layout rather than after prototype testing identifies problems.

Testing and Validation of RF PCBs

Simulation and measurement help engineers identify performance problems before and after fabrication.

The appropriate validation methods depend on operating frequency, circuit complexity, and electrical requirements.

Electromagnetic simulation can help evaluate transmission-line impedance, signal coupling, connector transitions, via structures, and grounding discontinuities.

S-parameter measurements can evaluate insertion loss, return loss, and other RF performance characteristics. Vector network analyzers are commonly used for these measurements.

For RF designs with demanding insertion-loss, return-loss, or phase requirements, appropriate calibration and fixture de-embedding may be required depending on the measurement setup and accuracy requirements.

Time-domain reflectometry (TDR) can help characterize impedance and identify discontinuities in suitable transmission-line structures.

Spectrum analysis can identify harmonics, spurious signals, and other unwanted emissions in operating RF circuits.

Near-field probing can help locate sources of electromagnetic interference and unintended coupling.

Not every RF PCB requires all these tests. Engineers should establish measurement requirements and acceptance criteria based on the application.

Bare-board manufacturing verification may include electrical continuity and isolation testing, dimensional inspection, and controlled-impedance measurements when specified.

Specialized RF measurements generally require suitable test structures or assembled circuits and should be discussed with the manufacturer before fabrication.

Manufacturing and DFM Considerations

RF PCB performance depends on both layout quality and manufacturing precision.

Variations in dielectric thickness, copper geometry, etching, plating, and solder mask can affect impedance and insertion loss.

Early design for manufacturability (DFM) review helps identify potential fabrication issues before production.

Confirm stackup requirements. Work with the PCB manufacturer to establish dielectric thicknesses, copper weights, material availability, and controlled-impedance targets.

Specify impedance requirements. Include target impedance values, tolerances, and relevant transmission-line information in fabrication documentation.

Review via structures. Confirm the manufacturability of blind vias, backdrilled vias, via-in-pad structures, and ground-via arrangements.

Consider connector transitions. RF connector launches may require specific pad dimensions, ground-via placement, and clearance geometries. Follow connector manufacturer recommendations.

Define inspection and testing requirements. Specify any required impedance coupons, electrical tests, or specialized RF measurements before fabrication.

Account for assembly requirements. Via fill, solder mask openings, and component pad design can affect assembly quality and electrical performance.

For additional guidance, review our PCB Design Guidelines for DFM.

Early coordination between the design team and PCB manufacturer helps reduce redesigns, manufacturing delays, and unexpected performance variations.

Checklist for RF PCB Success

Before releasing an RF PCB design for fabrication, review these key considerations:

  • Frequency and performance: Have operating frequencies, impedance targets, and acceptable signal losses been defined?
  • Materials and stackup: Does the selected laminate support the required electrical and thermal performance?
  • Controlled impedance: Are transmission-line geometries consistent with the intended stackup?
  • Grounding: Are continuous reference planes maintained beneath critical RF paths?
  • Via transitions: Have unnecessary vias and unused stubs been minimized?
  • Component placement: Are matching networks and sensitive RF components positioned appropriately?
  • RF isolation: Are sensitive RF circuits separated from potential noise sources?
  • Connector launches: Have RF connector transitions and ground-via arrangements been reviewed?
  • Testing: Are simulation, measurement, and acceptance requirements defined?
  • Manufacturability: Has the PCB manufacturer reviewed the stackup, materials, and critical fabrication requirements?

Addressing these considerations before fabrication can reduce design iterations and improve RF performance.

Conclusion

Successful RF PCB layout requires careful control of transmission-line geometry, grounding, component placement, and manufacturing tolerances.

Maintaining continuous reference planes, minimizing unnecessary transitions, and controlling impedance help reduce signal loss, reflections, and unwanted coupling.

Early collaboration with the PCB manufacturer also helps ensure the finished board meets the electrical and mechanical requirements of the design.

AdvancedPCB supports U.S.-based RF and microwave PCB fabrication, including multilayer constructions, specialized laminates, hybrid RF/FR-4 stackups, and controlled-impedance manufacturing.

Our engineering and manufacturing teams can review stackup requirements, trace geometry, material specifications, and fabrication considerations to help identify potential issues before production.

Explore our RF & Microwave PCB Manufacturing capabilities and request a quote for your next RF PCB project.
